w beam guardrail

w beam guardrail

1.designed to comply with AASHTO for highway
2.all components hot dipped galvanised
3.simple installation
standard size

w beam guardrail Description:

use of w beam guardrail:

Highway guardrails are considered as passive protectors with a view to ensure the safety of the pedestrians by the wayside and the vehicles. Highway guardrails are designed in pursuance to the principle of keeping the vehicle inside the road in a secure way and at the same time minimizing the loss of life and property in case of an accident.

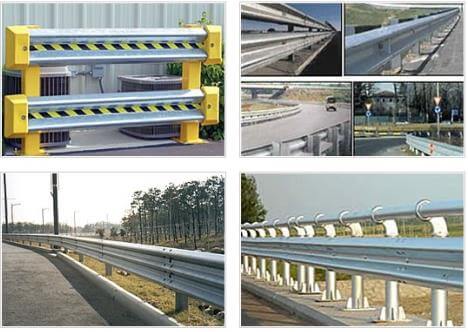

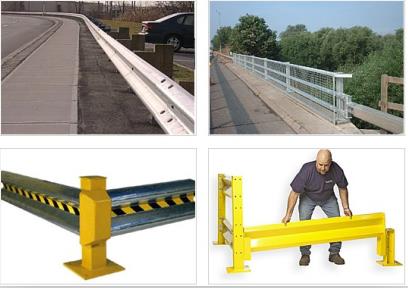

w beam guardrail imagew beam guardrail photo

w beam guardrail Specification

Normal Size(mm)3200/3300/4000/4130/4300/4320 × 306/310/312/380×80/82/83/85 × 2.50/2.67/2.70/2.75/3/4 & other sizes
Profilew-beam & thrie-beam
Base MaterialQ235B, Q345, Q345B, S355JR, HA350 and HA300 or equivalent
Thickness2.55mm, 2.75mm, 3mm, 4mm, 6mm or according to consumers' request3
Surface TreatmentHot dip galvanized or powder coated
Thickness of Galvanizing550g/m2 (80μ) or 610g/m2 (85μ) or 1100 g/m2 (160μ) or 1200 g/m2 (170μ) or as per your request
CertificateISO9001, ISO14000, ASTM, AASHTO, UL, SGS, CE, BV.
FeatureGreat corrosion resistant, high intensity, long and durable, with good impact resistance, low cost, long life, higher security, environmental protection, etc.
OtherOther special specification as per client's requirement or drawings.

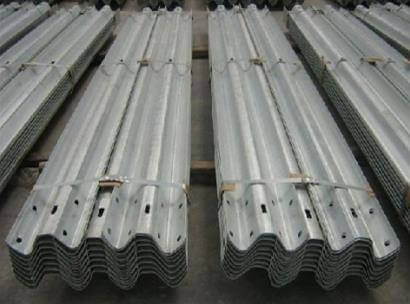

w beam guardrail manufacturerw beam guardrail for sale

W-Beam guardrail Popular Applications:

1. Car parking lot guardrail;

2. Industrial barriers;

3. Roadway guard crash barriers;

4. Median highway crash barrier;

5. Loading bays;

6. Warehouses;

7. Distribution depots;

8. Service roads;

9. Pedestrian areas;

10. Bridge guardrail;

w beam guardrail for sale

We manufacture w beam guardrail according to those Standards as below:

A. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China)

B. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA)

C. AS/NZS 3845:1999(Road Safety Barrier Systems - Australia/New Zealand)

D. BS EN-1317(Road Restraint Systems - Europe)

E. RAL RG620 (Germany)

F. Or tailor-make according to client's requirements

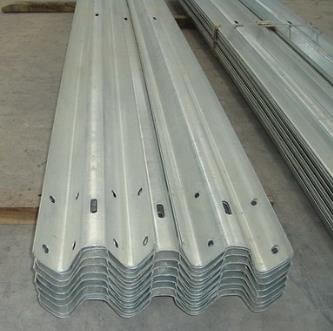

w beam guardrail in factory

w beam guardrail Guardrail Installation Steps:

Step 1. Site Preparation

Step 2. Driving the Posts

Step 3. Joining the W-Beam Guardrail Panels

Step 4. Connecting the W-Beam Guardrail Panels to the Posts

Step 5. Repeat Steps 2, 3 and 4

Step 6. Delineation (if required)

w beam guardrail FAQ

Q:How to buy your ideal products?

A:You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.

Q:How to pay?

A:TT and L/C are acceptable and TT will be more appreciated.

Q:What is the delivery time?

A:depends on order quantity. Generally, the delivery time will be within 20 to 25 days.


write down your requirement and contact details in the following form to get the latest price of this product within one day!
