highway safety guardrail

highway safety guardrail

1.Guardrail Can be finished with powdering finish or hot-dip galvanized finishing
2.The Guardrail quality control can meet the AASHTO standard
3.simple installation
zinc coating thickness
Two Wave or Three Wave
Cold Rolled

highway safety guardrail introduce:

Product Description

1. Normal Specification: 4320*310*83*3mm. Available in different sizes

2. Profile: W-beam; Three-beam

3. highway safety guardrail Standards: JT/T281-1995, AASHTO M-180, RAL-RG620, SPS98S or any other International Standards

4. Base steel: Steel Grade Q235B (equivalent to S235JR according to DIN EN 10025 and Gr. D according to ASTM A283M)

5. The thickness of the steel: 2.75mm, 3mm, 4mm or according to consumers request

6. Finish: Hot dip galvanized

7. The thickness of galvanized: 70um or according to consumers request

8. Certificate: ISO9001: 2001

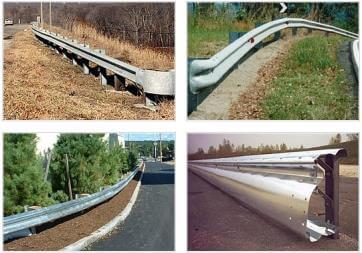

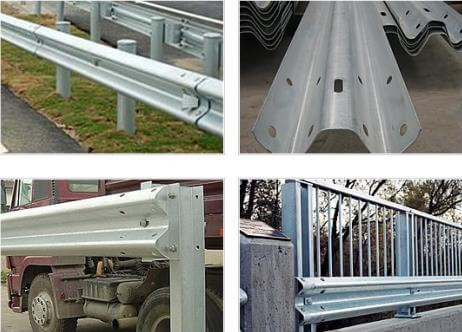

highway safety guardrail photohighway safety guardrail images

Main Use of safety guardrail

a. Being considered as passive protectors with a view to ensure the safety of pedestrians by the wayside from out of control vehicles.

b. To keep vehicles within the limits of the road in a secure way and to minimize the loss of life and property in the event of an accident at the same time.

c. To demarcate the road and prevent pedestrians and animals from straying into the road.

d. To ensure the safety of the drivers and the passengers by preventing their vehicles from going out of road.

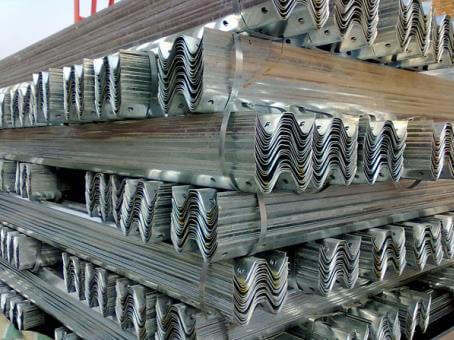

highway safety guardrail manufacturer

Other Supporting Products

1.Relevant Part---Guard rail Post (C, U, Sigma, H, Flange, Round Post )

(1).C Post Normal size: 1800*150*75*25*5mm, 1500*100*50*25*5mm, 1500*120*55*16*4/5mm, 1700*150*110*18*4/4.5/5mm, 1750*120*55*16*4/5mm, 1900*100*55*25*4/5mm and available in different sizes.

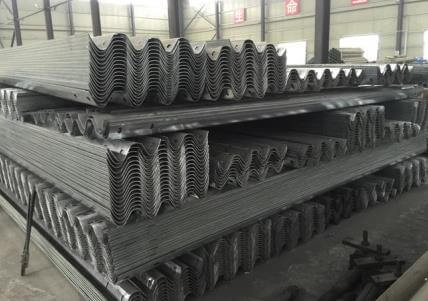

highway safety guardrail in factory

(2).U Post Normal size: 1400/1750/1820*150*75*4/4.5/5mm, 1800/1830*176/178*76*4.5/5/6mm, 1830*140*75*5/6mm, 1680/2200*120*80*5/6mm, 2000/1820*150*100*5mm and available in different sizes.

(3).Sigma Post and H Post

Sigma Post Normal size: 1500/1900/1950/2300/2500*100*55*4/4.2mm. Available in different sizes

H Post Normal size: 1830*157*82*5mm, 1830*157*82*5*7.4mm, 1800*150*100*5mm and available in different sizes

(4).Flange Post & Round Post

Flange Post Normal size: flange plate length: 300mm, flange plate width: 300mm, flange plate thickness: 10mm, and available in different sizes.

Round Post Normal size: Φ114*4.5*1750mm, Φ140*4.5*1850mm, Φ140*4.5*2250mm and available in different sizes.

2.Guard rail Accessories

(1).Guard rail Spacers Description: C, U, Round, and Sigma spacer and other types are available.

(2).Guard rail End Description

1.Main type: bull nose & fish tail.

2.JT/T 281-1995(China), AASHTO M180-79(USA), TL-SP 92(Germany).

(3).Guard rail Reflector & Bolts & Nuts

Guard rail Reflector: two side reflector or one side reflector Normal Size: 50*70*120mm Shape: trapezoid

Bolts & Nuts Normal Size: M16*35, M16*50

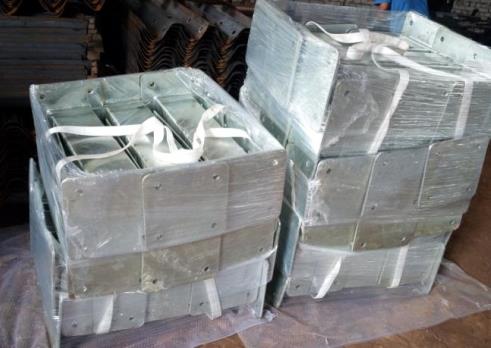

highway safety guardrail for sale

Packaging & Shipping

1. 30 pieces per bundle, and then fasten the bundle with wire straps or hemp ropes.

2.One 20 feet GP will hold about 510 pieces.

3.Customers' requirements are available, too.

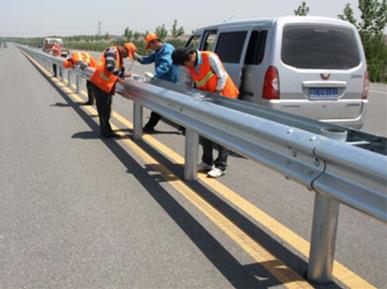

highway safety guardrail suppliers

Highway Guardrail FAQ

Q:Q: Are you trading company or manufacturer ?

A: We are factory.

Q:How to pay?

A:TT and L/C are acceptable and TT will be more appreciated.

Q:What is the delivery time?

A:depends on order quantity. Generally, the delivery time will be within 20 to 25 days.

Q:Q: Do you provide samples ? is it free or extra ?

A:Yes, we could offer the sample for free charge but do not pay the cost of freight.
