traffic guard rails
- Our Advantages
- 1.Prolessional engineer team and Extensive exporting experience
- 2.Prompt reply and Timely delivery
- 3.High quality and Competitive price
- 4.OEM/ODM service offered
- material:
- Q235,Q345 steel
- standard size
- 4320/4128*311*83*2.75/3/4MM
- Certificate
- CE,ISO9001:2000,GB/T19001-2000
traffic guard rails Description:
what is traffic guard rails?
traffic guard rails using soil base, column, beam deformation to absorb collision energy, and force is out of control vehicle changing direction, return to normal driving direction, prevent the vehicle out, in order to protect the vehicles and passengers, reduce the loss caused by accidents.
traffic guard rails Cold roll formed section
3mm /2.7mm /4MMthick HR sheet.
S235JR/S275JR/S355JR grade steel or equivalent
Hot dip galvanised 550 g/m2 or 610 g/m2
Yield Strength: 240-310 N/mm2
Tensile Strength: 410-490 N/mm2
Elongation: 15-25%
traffic guard rails plate
Anchored to foundation on Ground & Bridges
Channel section of 75x150x75x5mm
5mm thick HR sheet
S235JR/S275JR/S355JR grade steel or equivalent
Hot dip galvanised 550 g/m2 or 610 g/m2
traffic guard rails characteristic
traffic guard rails Buffer between Post & W-Beam
Channel section of 150x75x5mm.
5mm thick HR sheet
S235JR/S275JR/S355JR grade steel or equivalent
Hot dip galvanised 550 g/m2 or 610 g/m2
traffic guard rails Fasteners
Hot dip galvanised or electro galvanised bolts, nuts and washers conforming to IS 1367 of grade 4.6 MS
16mm dia Button head bolts for W-beam to W-beam & W-beam to spacer connection
16mm dia hexagonal head type bolts for spacer to post connection

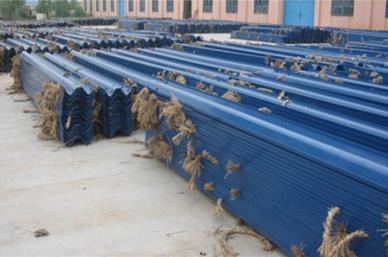

Packaging & delivery
1. 30 pieces per bundle, and then fasten the bundle with wire straps or hemp ropes.
2.One 20 feet GP will hold about 510 pieces.
3.Customers' requirements are available, too.
company introduction
HONGDA Group is founded in 2006 manufacturing complete system of safety guardrail (also named as crash barrier, safety road fence).
Main markets: South America(Peru, Venezuela),Southeast Asia(Myanmar, Malaysia, Philippines,Thailand,Indonesia), Middle East(Saudi Arabia ,Oman,UAE) , Africa( Ethiopia) and Russia.
Products: W Beam guardrail, three beam road barrier, steel posts (C Posts, U Posts, Sigma Posts and round post) and blocks, bolts&nuts and washers, reflector, cat's eye, fishtail terminal/bull nose terminal.
We produce Galvanised Highway Guardrail according to those Standards below:
a. JT/T 281-1995(Corrugated Sheet Steel Beams For Expressway Guardrail - China)
b. AASHTO-M180 (Corrugated Sheet Steel Beams For Highway Guardrail - USA)
Highway Guardrail FAQ
Q:How to buy your ideal products?
A:You can provide us your drawing, and we will produce as your drawing. Or we can design as your requirements if you do not have a clear plan.
Q:How to pay?
A:TT and L/C are acceptable and TT will be more appreciated.
Q:What is the delivery time?
A:depends on order quantity. Generally, the delivery time will be within 20 to 25 days.
